Carbon Steel Pipe Bend Specifications

Carbon Steel Pipe bend specification





Supplier of High Carbon Steel Seamless Pipe Bend in 1/2" to 24" sizes, View Dimension Chart



Pipe bend dimension chart



CS Bend Dimension Chart

Nominal Pipe Size Back to Face Center to Center Outside Diameter
NPS B D O.D.
8 313 406 219.1
10 391 508 273.1
12 467 610 323.9
1/2 21.3
3 1/2 140 178 101.6
4 159 203 114.3
5 197 254 141.3
6 237 305 168.3
22 838 1118 559
16 610 813 406.4
18 686 914 457.2
20 762 1016 508
24 914 1219 610
3/4 26.7
1 41 51 33.4
1 1/4 52 64 42.2
1 1/2 62 76 48.3
2 81 102 60.3
2 1/2 100 127 73
3 121 152 88.9
14 533 711 355.6



Know More About Surface Treatment of Normalized Carbon Steel Welded Pipe Bend


Carbon Steel Buttweld Pipe Bend Surface Treatment

  • Rust proof
  • Paintting black color
  • Anti rust oil
  • Black painted



Various Types of CS Pipe bend

LTCS long radius bend
Plain carbon steel short radius bend
Killed carbon steel piggable bends

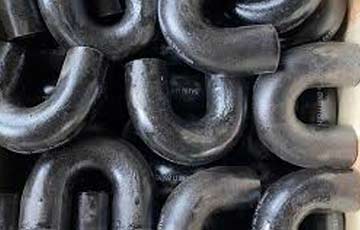

Carbon steel U bend



Low temperature carbon steel J pipe bend
Plain carbon steel 45 deg bend
Normalized carbon steel 90 degree bend
Carbon steel 180 degree pipe bend





Low Carbon Steel U Bend Weight Chart

Stockist of Black CS Hot Induction Bend in Thickness Ranging From SCH 10 to SCH 160, see Weight Chart



NPS SCH 80 SCH XXS SCH XS SCH 40 SCH 160
1 0.32 0.42 0.32 0.23 0.39
4 7.44 9.90 7.44 5.53 9.00
5 12.56 16.72 12.56 8.71 15.20
6 20.73 27.59 20.73 14.92 25.08
1 1/4 0.45 0.60 0.45 0.36 0.55
1 1/2 0.68 0.91 0.68 0.50 0.83
8 43.68 58.14 43.68 29.44 52.85
10 72.57 86.33 64.86 50.80 78.48
2 1.32 1.77 1.32 0.86 1.59
3 3.72 4.95 3.72 2.72 4.50
12 102.06 127.99 96.16 74.84 116.35



3LPE vs FBE Coating

Get Medium Carbon Steel 3D Bend in Epoxy, 3LPE and FBE Coating as per ASME B16.28 US Standard



Feature FBE Coating 3LPE Coating
Layers 1 3
Composition Epoxy resin FBE + Adhesive + Polyethylene
Application Interior or exterior of pipes Typically exterior of underground pipes
Protection Chemical resistance Corrosion resistance, impact resistance, UV resistance
