ASTM A249 TP304 Tube

Kamal Steels is a distinguished manufacturer, supplier, and exporter of Astm A249 Tp304. Sa 249 Tp 304 specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels. We offer ASTM A249 Welded Tubes mostly used as boiler, heat exchanger, superheater, condenser tubes. Kamal Steel is India's largest stockholder of Astm A249 Tp304 includes ASTM A249 TP304 Stainless Steel Square Tube, ASTM A249 TP304 Stainless Steel rectangular tube,ASTM A249 TP304 Stainless steel oval tube,ASTM A249 TP304 Heat Exchanger tube, ASTM A249 TP304 stainless Steel Condenser tube, ASTM A249 TP304 Superheater Tube and ASTM A249 TP304 Stainless Steel round tube in custom-made and shapes as per the requirements given by our clients, and that too at reasonable and market leading prices. Make direct contact with the top providers of ASTM A249 TP304 Tube, who have served several nations, such as South Africa, Libya, Syria, and Cyprus.

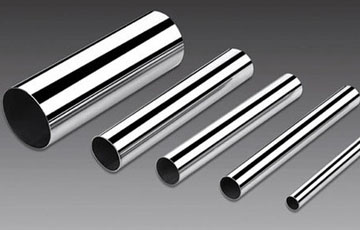

A249 TP304 Welded Tube

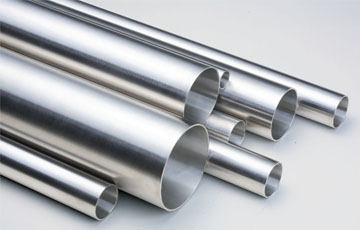

ASTM A249 TP304 Tubing

Table Of Content

ASTM A249 TP304 Tube Specification
SA 249 Gr 304 Condenser Tube Size Range
Types of ASTM A249 304 Tubing
Testing of SA 249 Grade TP304 Coil Tubing
Chemical Composition of ASTM A249 304 Stainless Steel Tube
SA 249 TP 304 Welded Tube Mechanical Properties
ASME SA 249 304 Cold Drawn ERW Tube Physical Properties
Equivalent Grades of A249 TP304 Boiler Tube

Manufacturer of A249 TP304 Welded Tubing in India, Refer Specifiactions

ASTM A249 TP304 Tube Specification

ASTM A249 tp304 tube inside diameter

1/8 in. [3.2 mm]

A249 type 304 welded tube outside diameter

12 in. [304.8 mm]

A249 304 ERW tube wall thickness

0.015 to 0.320 in. [0.4 to 8.1 mm]

ASTM A249 tp304 ERW tubes strength

Yeild strength: 205 MPa
Tensile strength: 515 MPa

ASTM standard of SA 249 condenser tube

ASTM A249
ASME SA249

SWG of A249 304 heat exchanger tube

10 Swg. 12 Swg. 14 Swg.
16 Swg. 18 Swg. 20 Swg.

TP304 heat exchanger tube melting point

1400 °C (2550 °F)

A249 Gr 304 superheater tube length

6m or custom

A249 Type 304 tubing density

8.0 g/cm3

A249 Gr 304 CEW tube max operating temperature

1900 °F [1040 °C]

A249 Gr 304 square tubing temprature range

910º – 1400º

A249 type 304 SS welded tube hardness range

201HB Brinell hardness

A249 304 welded tube schedule

SCH 10, SCH XXH
SCH 5, SCH XXS
SCH 40, SCH 80S
SCH XS, SCH 160, SCH 80

A249 Gr 304 CEW tube technique

Cold rolled
Extrusion
Cold drawn
Hot rolled tube

A249 type 304 tube manufacturing types

Welded
CDW, ERW
Fabricated
DOM, CEW

SA249 type 304 HFW tube marking

Specification
Material grade
Nominal size
Schedule or wall thickness

A249 Gr 304 CEW tube welding method

SMAW
FCAW
GMAW
TIG

ASTM A249 304 round tube applications

Boiler
Superheater
Heat exchanger
Condenser

ASTM A249 Grade 304 Condenser & Heater Tubes Supplier in Mumbai, View Size Range

SA 249 Gr 304 Condenser Tube Size Range

Production	WT	OD
Welded Pipe	0.5mm to 48mm	6.00mm to 830mm

Types of ASTM A249 304 Tubing

A249 TP304 Bolier Tube and ASTM A249 Grade 304 ERW Tube, With Different Types of Testings

Testing of SA 249 Grade TP304 Coil Tubing

Eddy Current Testing
O.P Testing
Radiography Testing
Corrosion Testing
Micro Testing
IGC Testing
Ultrasonic testing
Liquid Penetrate testing

Chemical Composition of ASTM A249 304 Stainless Steel Tube

Check Chemical Testing of SA 249 Gr 304 Condenser Tube

GRADES	UNS	Cr	S	Ni	C	Si	Mn	P
TP304	S30400	18.0-20.0	0.03	8.0-11.0	0.08	1	2	0.045

SA 249 TP 304 Welded Tube Mechanical Properties

Material	Temperure	Tensile Strength	Yield Strength	Heat	Elongation %, Min
	Min.º F(º C)	Ksi (MPa), Min.	Ksi (MPa), Min.	Treatment

TP304	1900 (1040)	75(515)	30(205)	Solution	35

ASME SA 249 304 Cold Drawn ERW Tube Physical Properties

Find Physical Properties of ASME SA 249 304 Cold Drawn Welded Tube and ASTM A249 Grade 304 Stainless Steel 320 Superheater Tube

Grade	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Density (kg/m3)	Electrical Resistivity (nΩ.m)	Elastic Modulus (GPa)	Specific Heat 0-100°C (J/kg.K)
Grade	0-100°C	0-315°C	0-538°C	at 100°C	at 500°C	Density (kg/m3)	Electrical Resistivity (nΩ.m)	Elastic Modulus (GPa)	Specific Heat 0-100°C (J/kg.K)
304	17.2	17.8	18.4	16.2	21.5	8000	720	193	500

Equivalent Grades of A249 TP304 Boiler Tube

Grade	UNS No	Euronorm		Old British		Japanese JIS	Swedish SS
Grade	UNS No	No	Name	BS	En	Japanese JIS	Swedish SS
ASTM A249 TP304	S30400	1.4301	X5CrNi18-10	304S31	58E	SUS 304	2332
