ASTM A249 TP201 TUBE Supplier

ASTM A249 TP201 MANUFACTURER IN INDIA, ASTM A249 TP201 STAINLESS STEEL WELDED TUBE, ASTM A249 TP201 SUPPLIERS IN MUMBAI


ASTM A249 TP201 STAINLESS STEEL TUBE, ASTM A249 STAINLESS STEEL 201 WELDED TUBE, ASME SA249 TP201 WELDED TUBE, ASTM A249 SS 201 TUBE EXPORTER IN INDIA


KAMAL STEEL INDUSTRIES is illustrious supplier, manufacturer, and exporter of ASTM A249 TP201 Tube. We are committed to upgrading the capabilities of ASME SA 249 Tp 201 Seamless Tube technical and administrative staff through formal training and continuous technical quality awareness SA 249 Tp 201 specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels. ASTM A249 TP201 Stainless Steel Welded Tubes has excellent corrosion resistance in ordinary atmospheric conditions, it is easily machined and is also easy to weld. Kamal Steel Industries is India's largest stockholder of ASTM a249 stainless steel tube includes ASTM A249 TP201 Stainless Steel Square Tube,ASTM A249 TP201 Stainless Steel rectangular tube, ASTM A249 TP201 stainless Steel Condenser tube,ASTM A249 TP201 Stainless steel oval tube,ASTM A249 TP201 Heat Exchanger tube, ASTM A249 TP201 Superheater Tube and ASTM A249 TP201 Stainless Steel round tube in custom-made shapes and sizes as per the requirements given by our clients, and that too at an reasonable and market leading prices.


ASTM A249 TP201 Tube

ASTM A249 TP201 Tube

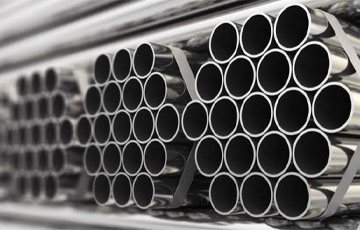

 A249 TP201 Welded Tube

A249 TP201 Welded Tube

ASTM A249 TP201 Tubing

ASTM A249 TP201 Tubing


ASTM A249 TP201 Stainless steel Tube Specification

Finish No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Grades ASTM A249 TP201, ASME SA249 TP201

Size

1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length  Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Delivery Condition Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
Thickness  1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10


ASTM A249 TP201 Stainless Steel Tubes, ASTM A249 TP201 Welded Tubes Dealer, ASTM A249 TP201 Stainless Welded Tubes, ASTM A249 TP201 Stainless Steel Tubing, ASTM A249 TP201 SS Tubes, ASTM A249 TP201 SS Tubing, ASTM A249 TP201 Cold Draw Welded Tubes, ASTM A249 TP201 Stainless Steel ERW Tubes

SUPPLIERS OF ASTM A249 TP201 STAINLESS STEEL WELDED TUBES, ASTM A249 TP201 WELDED TUBE, ASTM A249 TP201 STAINLESS STEEL TUBE EXPORTER, ASTM A249 UNS S31603 WELDED TUBE DISTRIBUTOR, ASTM A249 GRADE 201 WELDED HEAT EXCHANGER TUBE DISTRIBUTOR, TP201 A249 WELDED CONDENSER TUBE DEALER, ASTM A249 TP201 TUBES SUPPLIER IN MUMBAI, INDIA.



Types of ASTM A249 TP201 Stainless Steel Tube



ASTM A249 TP201 Boiler Tube
ASTM A249 TP201 Decorative Tube
ASTM A249 TP201 Hollow Tube

ASTM A249 TP201 Oval Tube
ASTM A249 TP201 Polished Tube
ASTM A249 TP201 Capillary

ASTM A249 TP201 square Tube
ASTM A249 TP201 seamless Tube
ASTM A249 TP201 Round Tube
ASTM A249 TP201 Rectangular Tube

ASTM A249 TP201 Exhaust Tube

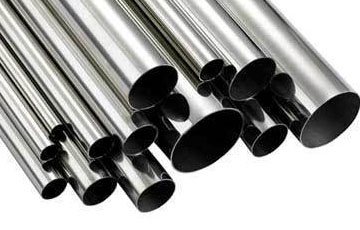

ASTM A249 TP201 Condenser Tube
ASTM A249 TP201 U Tube
ASTM A249 TP201 Perofrated





ASTM A249 TP201 Stainless Steel Tube Sizes

ASTM A249 TP201 Stainless steel tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Welded Tube is manufactured in sizes from 1/2” to 8”NB according to current standards API, ASTM, and ASME.



ASTM A249 TP201 TUBE DIMENSIONS AND WEIGHTS

ASTM A249 Round Tube 201 stainless steel - ASTM A249 TP201 Welded Mirror Polished

O/D Wall Weight per O/D Wall Weight per
(ins) (mm) metre (kg) (ins) (mm) metre (kg)
1/2 1.50 0.42 1 1/4 1.50 1.13
5/8 1.20 0.44 1 3/8 1.20 1.02
5/8 1.50 0.54 1 1/2 1.20 1.11
3/4 1.20 0.53 1 1/2 1.50 1.38
3/4 1.50 0.66 1 1/2 2.00 1.81
3/4 1.20 0.63 1 3/4 1.50 1.62
7/8 1.50 0.78 2 1.20 1.49
7/8 2.00 1.01 2 1.50 1.85
1 1.20 0.73 2 2.00 2.40
1 1.50 0.90 2 1/2 1.50 2.34
1 2.00 1.17 3 1.50 2.81
1 1/8 1.50 1.02 4 3.00 7.41
1 1/4 1.20 0.92



ASTM A249 Square Tube 201 Welded Dull Polished

Dimensions Wall Weight per Dimensions Wall Weight per
(mm) (mm) metre (kg) (mm) (mm) metre (kg)
12.7 x 12.7 1.20 0.44 40 x40 1.20 1.49
12.7 x 12.7 1.50 0.55 40 x40 1.50 1.85
15 x 15 1.20 0.53 40 x40 2.00 2.45
15 x 15 1.50 0.65 40 x40 3.00 3.75
20 x 20 1.20 0.71 50 x50 1.50 2.32
20 x 20 1.50 0.88 50 x50 2.00 3.08
20 x 20 2.00 1.19 50 x50 3.00 4.65
25 x 25 1.20 0.92 60 x60 2.00 3.71
25 x 25 1.50 1.14 60 x60 3.00 5.49
25 x 25 2.00 1.49 70 x70 3.00 6.53
25 x 25 3.00 2.20 80 x80 2.00 4.98
30 x 30 1.20 1.10 80 x80 3.00 7.53
30 x 30 1.50 1.37 100 x 100 2.00 6.40
30 x 30 2.00 1.84 100 x 100 3.00 9.53
30 x 30 3.00 2.72



ASTM A249 Square Tube 201 Welded unpolished

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
12.7 x 12.7 1.20 0.44 120 x 120 5.00 18.66
12.7 x 12.7 1.50 0.55 120 x 120 6.00 21.20
40 x 40 4.00 4.80 150 x 150 4.00 18.60
50 x 50 4.00 5.96 150 x 150 5.00 23.00
50 x 50 5.00 7.41 150 x 150 6.00 31.20
60 x 60 4.00 7.22 150 x 150 8.00 34.30
60 x 60 5.00 8.90 150 x 150 10.00 41.65
80 x 80 4.00 9.82 200 x 200 5.00 30.80
80 x 80 5.00 12.39 200 x 200 6.00 36.90
100 x 100 4.00 12.40 200 x 200 8.00 47.25
100 x 100 5.00 15.38 200 x 200 10.00 57.60
100 x 100 6.00 17.50 250 x 250 8.00 59.90
100 x 100 8.00 21.60 250 x 250 10.00 73.50



ASTM A249 Type 201 Handrail Section, welded, unannealed (dull polished)

O/D Wall Weight per O/D Wall Weight per
(mm) (mm) metre (kg) (in) (mm) metre (kg)
42.40 x 2.5 2.49 1 1/2 3.00 2.62
48.30 x 2.5 2.86 2 3.00 3.57
60.30 x 2.5 3.61 3 3.00 5.47
4 3.00 7.38



Rectangular 201 Tube welded unpolished

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions(mm) Wall (mm) Weight per metre (kg)
80 x 40 4.00 7.22 150 x 100 4.00 15.40
80 x 40 5.00 8.90 150 x 100 5.00 18.80
100 x 50 4.00 9.09 150 x 100 6.00 22.60
100 x 50 5.00 11.30 150 x 100 8.00 27.90
120 x 60 3.00 8.39 200 x 100 4.00 18.60
120 x 60 4.00 11.10 200 x 100 5.00 22.60
120 x 60 5.00 13.75 200 x 100 6.00 27.40
120 x 80 3.00 9.54 200 x 100 8.00 34.30
120 x 80 4.00 12.40 200 x 100 10.00 41.65
120 x 80 5.00 15.38 200 x 150 6.00 36.90
150 x 50 3.00 9.53 200 x 150 8.00 41.34
150 x 50 5.00 15.38 300 x 100 8.00 47.25
150 x 80 3.00 10.70 250 x 150 6.00 36.90
150 x 100 3.00 11.70 250 x 150 8.00 47.25



ASTM A249 Rectangular 201 Stainless Steel Tube welded dull polished

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
20 x 10 1.50 0.44 60 x 40 2.00 3.08
30 x 10 1.20 0.71 60 x 40 3.00 4.65
30 x 10 1.50 0.90 80 x 40 1.50 2.80
30 x 15 1.50 0.76 80 x 40 2.00 3.71
30 x 20 1.50 1.14 80 x 40 3.00 5.49
40 x 15 1.50 1.25 80 x 40 4.00 7.22
40 x 20 1.20 1.10 80 x 40 5.00 8.94
40 x 20 1.50 1.37 80 x 60 3.00 6.53
40 x 20 2.00 1.84 100 x 40 1.50 3.29
50 x 25 1.20 1.41 100 x 40 3.00 6.53
50 x 25 1.50 1.75 100 x 50 2.00 4.68
50 x 25 2.00 2.31 100 x 50 3.00 6.95
50 x 25 3.00 3.75 100 x 50 4.00 9.09
50 x 30 1.50 1.85 100 x 50 5.00 11.30
50 x 30 3.00 3.61 100 x 60 3.00 7.53
60 x 20 1.50 1.85 120 x 60 3.00 8.12
60 x 20 2.00 2.45 120 x 80 3.00 9.53
60 x 30 2.00 2.80 150 x 100 3.00 11.70
60 x 30 3.00 4.13 150 x 100 5.00 18.80
60 x 40 1.50 2.32



ASTM A249 TP201 STAINLESS STEEL TUBE SCHEDULE CHART

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″




ANSI Pipe SCH5 to SCH40 Chart

Pipe Size O.D. Inches 5s TRUE 5 10s TRUE 10 20 30 40s & STD TRUE 40 60
1/8 0.405 0.35 0.049 0.049 0.068 0.068
0.1383 0.1863 0.1863 0.2447 0.2447
1/4 0.54 0.049 0.065 0.065 0.088 0.088
0.257 0.3297 0.3297 0.4248 0.4248
3/8 0.675 0.049 0.065 0.065 0.091 0.091
0.3276 0.4235 0.4235 0.5676 0.5676
1/2 0.84 0.065 0.065 0.083 0.083 0.109 0.109
0.5383 0.5383 0.671 0.671 0.851 0.851
3/4 1.05 0.065 0.065 0.083 0.083 0.113 0.113
0.6838 0.6838 0.8572 0.8572 1.131 1.131
1 1.315 0.065 0.065 0.109 0.19 0.133 0.133
0.8678 0.8678 1.404 1.404 1.679 1.679
1 1/4 1.66 0.065 0.065 0.109 0.109 0.14 0.14
1.107 1.107 1.806 1.806 2.273 2.273
1 1/2 1.9 0.065 0.065 0.109 0.109 0.145 0.145
1.274 1.274 2.638 2.638 2.718 2.718
2 2.375 0.065 0.065 0.109 0.109 0.154 0.154
1.604 1.604 2.638 2.638 3.653 3.653
2 1/2 2.875 0.083 0.083 0.12 0.12 0.203 0.203
2.475 2.475 3.531 3.531 5.793 5.793
3 3.5 0.083 0.083 0.12 0.12 0.216 0.216
3.029 3.029 4.332 4.332 7.576 7.576
3 1/2 4 0.083 0.083 0.12 0.12 0.226 0.226
3.472 3.472 4.97 4.97 9.109 9.109
4 4.5 0.083 0.083 0.12 0.12 0.237 0.237 0.281
3.915 3.915 5.613 5.613 10.79 10.79 12.66
4 1/2 5 0.247
12.53
5 5.563 0.109 0.109 0.134 0.134 0.258 0.258
6.349 6.349 7.77 7.77 14.62 14.62
6 6.625 0.109 0.109 0.134 0.134 0.28 0.28
7.585 7.585 9.289 9.289 18.97 18.97
7 7.625 0.301
23.57
8 8.625 0.109 0.109 0.148 0.148 0.25 0.277 0.322 0.322 0.406
9.914 9.914 13.4 13.4 22.36 24.7 28.55 28.55 35.64
9 9.625 0.342
33.9
10 10.75 0.134 0.134 0.165 0.165 0.25 0.307 0.365 0.365 0.5
15.19 15.19 18.65 18.65 28.04 34.24 40.48 40.48 54.74
11 11.75 0.375
45.55
12 12.75 0.156 0.165 0.18 0.18 0.25 0.33 0.375 0.406 0.562
21.07 22.18 24.2 24.2 33.38 43.77 49.56 53.53 73.16
14 14 0.156 0.188 0.25 0.312 0.375 0.375 0.437 0.593
23.06 27.73 36.71 45.68 54.57 54.57 63.67 84.91
16 16 0.165 0.188 0.25 0.312 0.375 0.375 0.5 0.656
27.9 31.75 42.05 52.36 62.58 62.58 82.77 107.5
18 18 0.165 0.188 0.25 0.312 0.437 0.375 0.562 0.75
31.43 35.76 47.39 59.03 82.06 70.59 104.8 138.2
20 20 0.188 0.218 0.25 0.375 0.5 0.375 0.593 0.812
39.78 46.05 52.73 78.6 104.1 78.6 122.9 166.4
24 24 0.218 0.25 0.25 0.375 0.562 0.375 0.687 0.968
55.37 63.41 63.41 94.62 140.8 94.62 171.2 238.1
26 26 0.312 0.5 0.375
85.6 136.2 102.6
28 28 0.312 0.5 0.625 0.375
92.26 146.8 182.7 110.6
30 30 0.25 0.312 0.312 0.5 0.625 0.375
79.43 98.93 98.93 157.5 196.1 118.6
32 32 0.312 0.5 0.625 0.375 0.688
105.6 168.2 209.4 126.7 230.1
34 34 0.312 0.5 0.625 0.375 0.688
112.3 178.9 222.8 134.7 244.8
36 36 0.312 0.625 0.375 0.75
118.9 236.1 142.7 282.3
40 40 0.375
158.7
42 42 0.375
166.7
48 48 0.375
190.7



ASTM A249 TP201 TUBE PRESSURE RATING





Tube Pressure Rating For ASTM A249 TP201

OD inches Ave. Wall inches Min Yield Strength (PSI) Min Tensile Strength (PSI) Theoretical Burst Pressure * (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point ** (PSI) Collapse Pressure *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,ASME SA249 201
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,ASME SA249 201
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,ASTM A249 201
0.875 0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
1.250 0.065 30,000 75,000 8,705 2,176 3,482 2,958
1.250 0.083 30,000 75,000 11,485 2,871 4,594 3,719
1.250 0.095 30,000 75,000 13,443 3,361 5,377 4,213
1.250 0.109 30,000 75,000 15,843 3,961 6,337 4,776
1.250 0.120 30,000 75,000 17,822 4,455 7,129 5,207
1.250 0.134 30,000 75,000 20,468 5,117 8,187 5,742
1.500 0.035 30,000 75,000 3,671 918 1,469 1,367
1.500 0.049 30,000 75,000 5,243 1,311 2,097 1,896
1.500 0.065 30,000 75,000 7,117 1,779 2,847 2,487
1.500 0.083 30,000 75,000 9,333 2,333 3,733 3,136
1.500 0.095 30,000 75,000 10,878 2,719 4,351 3,559
1.500 0.109 30,000 75,000 12,754 3,188 5,101 4,043
1.500 0.120 30,000 75,000 14,286 3,571 5,714 4,416
1.500 0.134 30,000 75,000 16,315 4,079 6,526 4,881
1.500 0.148 30,000 75,000 18,439 4,610 7,375 5,336
1.750 0.035 30,000 75,000 3,125 781 1,250 1,176
1.750 0.049 30,000 75,000 3,864 966 1,546 1,434
1.750 0.065 30,000 75,000 6,019 1,505 2,407 2,146
1.750 0.083 30,000 75,000 7,860 1,965 3,144 2,711
1.750 0.095 30,000 75,000 9,135 2,284 3,654 3,080
1.750 0.109 30,000 75,000 10,672 2,668 4,249 3,504
1.750 0.120 30,000 75,000 11,921 2,980 4,768 3,832
1.750 0.134 30,000 75,000 13,563 3,391 5,425 4,242
1.750 0.148 30,000 75,000 15,268 3,817 6,107 4,645
1.750 0.165 30,000 75,000 17,430 4,357 6,972 5,124
2.000 0.035 30,000 75,000 2,720 680 1,088 1,032
2.000 0.049 30,000 75,000 3,864 966 1,546 1,434
2.000 0.065 30,000 75,000 5,214 1,303 2,086 1,887
2.000 0.083 30,000 75,000 6,788 1,697 2,715 2,387
2.000 0.095 30,000 75,000 7,873 1,968 3,149 2,715
2.000 0.109 30,000 75,000 9,175 2,294 3,670 3,092
2.000 0.120 30,000 75,000 10,227 2,557 4,091 3,384
2.000 0.134 30,000 75,000 11,605 2,901 4,642 3,751
2.000 0.148 30,000 75,000 13,028 3,257 5,211 4,111
2.000 0.165 30,000 75,000 14,820 3,705 5,928 4,542



Diameter Tolerance ASTM A249 TP201 Tube

NPS ASTM A249 TP201 Tube OD Tolerance
+
inch mm inch mm
1/8~1 1 /2
> 1 1 /2~4
> 4~8
> 8~18
> 18~26
> 26~34
> 34~48
1/64(0.015)
1/32(0.031)
1/16(0.062)
3/32(0.093)
1/8(0.125)
5/32(0.156)
3/16(0.187)
0.4
0.8
1.6
2.4
3.2
4.0
4.8
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
0.8
0.8
0.8
0.8
0.8
0.8
0.8

Wall Thickness Tolerance ASTM A249 TP201 Tubes

NPS ASTM A249 TP201 Tube Tolerance, %
+
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, welded 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5



1/8″-15/16″, 1″-1-7/8″, 2″-3-3/4″,4″-7″,10″-14″

  • ASTM A249 TP 201 Tube can be cut to size or polished per customer specification.
  • ASTM A249 TP 201 Tube is stocked in 17′ to 24′ R/L sections. Longer lengths can be made to order.
Nominal OD / Wall Nominal ID Nominal WT / FT Grade
1/8 x .010 .105 .0126 201
201
1/8 x .012 .101 .0149 201
1/8 x .016 .093 .0191 201
201
1/8 x .020 .085 .0231 201
201
1/8 x .028 .069 .0298 201
201
1/8 x .035 .055 .0346 201
201
321
5/32 x .016 .124 .0246 201
5/32 x .020 .116 .0299 201
201
5/32 x .028 .100 .0394 201
201
5/32 x .035 .086 .0456 201
3/16 x .010 .168 .0195 201
201
3/16 x .016 .156 .0302 201
3/16 x .020 .148 .0369 201
201
3/16 x .028 .132 .0492 201
201
3/16 x .035 .118 .0589 201
201
321
3/16 x .049 .090 .0749 201
201
1/4 x .010 .230 .0272 201 Back to Top
201
1/4 x .016 .218 .0411 201
201
1/4 x .020 .210 .0506 201
201
1/4 x .022 .206 .0552 201
1/4 x .028 .194 .0683 201
201
321
1/4 x .035 .180 .0827 201
201
321
1/4 x .049 .152 .1083 201
201
1/4 x .065 .120 .1322 201
201
1/4 x .083 .084 .1524 201
201
5/16 x .020 .273 .0643 201
201
321
5/16 x .028 .257 .0876 201
201
321
5/16 x .035 .243 .1068 201
201
5/16 x .049 .215 .1420 201
201
5/16 x .065 .183 .1769 201
201
5/16 x .083 .144 .2095 201
3/8 x .010 .355 .0402 201
3/8 x .016 .343 .0631 201
3/8 x .020 .335 .0781 201
201
321
3/8 x .028 .319 .1068 201
201
3/8 x .035 .305 .1309 201
201
321
3/8 x .049 .277 .1757 201
201
321
3/8 x .065 .245 .2216 201
201
3/8 x .083 .209 .2666 201
201
3/8 x .095 .185 .2926 201
201
3/8 x .109 .157 .3189 201
3/8 x .120 .135 .3366 201
7/16 x .020 .398 .0918 201 Back to Top
7/16 x .028 .382 .1261 201
201
7/16 x .035 .368 .1549 201
201
7/16 x .049 .340 .2094 201
201
7/16 x .065 .308 .2663 201
201
7/16 x .083 .272 .3236 201
7/16 x .095 .248 .3579 201
7/16 x .120 .198 .4191 201
1/2 x .016 .468 .0851 201
1/2 x .020 .460 .1056 201
201
321
1/2 x .028 .444 .1453 201
201
321
1/2 x .035 .430 .1790 201
201
321
1/2 x .049 .402 .2430 201
201
321
1/2 x .065 .370 .3110 201
201
1/2 x .083 .334 .3807 201
201
1/2 x .095 .417 .4232 201
201
1/2 x .109 .282 .4688 201
1/2 x .120 .260 .5016 201
201
9/16 x .028 .507 .1646 201 Back to Top
201
9/16 x .035 .493 .2030 201
201
9/16 x .049 .465 .2767 201
321
9/16 x .065 .433 .3557 201
201
9/16 x .083 .397 .4377 201
201
9/16 x .120 .323 .5841 201
5/8 x .020 .585 .1331 201
201
5/8 x .028 .569 .1838 201
201
5/8 x .035 .555 .2271 201
201
321
5/8 x .049 .527 .3104 201
201
321
5/8 x .065 .495 .4004 201
201
5/8 x .083 .459 .4948 201
201
5/8 x .095 .435 .5538 201
201
5/8 x .120 .385 .6666 201
201
11/16 x .035 .618 .2562 201
201
11/16 x .049 .590 .3441 201
201
11/16 x .065 .558 .4451 201
201
3/4 x .028 .694 .2223 201 Back to Top
201
3/4 x .035 .680 .2752 201
201
321
3/4 x .049 .652 .3778 201
201
321
3/4 x .065 .620 .4897 201
201
317/L
321
3/4 x .083 .584 .6089 201
201
3/4 x .109 .532 .7685 201
201
3/4 x .120 .510 .8201 201
201
13/16 x .035 .742 .2414 201
201
13/16 x .049 .714 .4112 201
13/16 x .065 .682 .5341 201
7/8 x .028 .819 .2609 201
7/8 x .035 .805 .3234 201
201
7/8 x .049 .777 .4452 201
201
7/8 x .065 .745 .5791 201
201
7/8 x .083 .709 .7231 201
201
7/8 x .095 .685 .8151 201
201
7/8 x .120 .635 .9966 201
201
15/16 x .065 .808 .6242 201 Back to Top
201
1 x .020 .960 .2156 201
1 x .028 .944 .2993 201
201
321
1 x .035 .930 .3715 201
201
321
1 x .049 .902 .5126 201
201
1 x .065 .870 .6685 201
201
321
1 x .083 .834 .8372 201
201
321
1 x .095 .810 .9457 201
201
1 x .109 .782 1.0683 201
201
321
1 x .120 .760 1.1616 201
201
1-1/16 x .035 .992 .3954 201
201
1-1/8 x .035 .880 .4196 201
201
1-1/8 x .049 1.027 .5799 201
201
1-1/8 x .065 .995 .7579 201
201
1-1/8 x .083 .959 .9513 201
201
1-1/8 x .095 .935 1.0763 201
1-1/8 x .120 .885 1.3266 201
201
1-3/16 x .035 1.118 .4439 201
1-3/16 x .049 1.090 .6139 201
1-3/16 x .065 1.058 .8029 201
201
1-3/16 x .095 .998 1.1422 201
201
1-3/16 x .120 .948 1.4098 201
1-1/4 x .020 1.210 .6473 201 Back to Top
1-1/4 x .028 1.194 .3763 201
321
1-1/4 x .035 1.180 .4677 201
201
321
1-1/4 x .049 1.152 .6473 201
201
321
1-1/4 x .065 1.120 .8473 201
201
321
1-1/4 x .083 1.084 1.0655 201
201
1-1/4 x .095 1.060 1.2070 201
201
1-1/4 x .109 1.032 1.3681 201
201
1-1/4 x .120 1.010 1.4916 201
201
321
1-5/16 x .065 1.182 .8916 201
1-5/16 x .120 1.072 1.5734 201
1-3/8 x .035 1.305 .5159 201
1-3/8 x .049 1.277 .7147 201
201
1-3/8 x .065 1.245 .9366 201
201
1-3/8 x .083 1.209 1.1796 201
1-3/8 x .095 1.185 1.3376 201
1-3/8 x .120 1.135 1.6566 201
1-1/2 x .028 1.444 .4533 201 Back to Top
321
1-1/2 x .035 1.430 .5640 201
201
321
1-1/2 x .049 1.402 .7821 201
201
321
1-1/2 x .065 1.370 1.0260 201
201
321
1-1/2 x .083 1.334 1.2937 201
201
321
1-1/2 x .095 1.310 1.4682 201
201
1-1/2 x .109 1.282 1.6678 201
201
1-1/2 x .120 1.260 1.8216 201
201
1-1/2 x .134 1.232 2.0135 201
201
1-1/2 x .156 1.188 2.3063 201
201
1-5/8 x .049 1.527 .8494 201
201
1-5/8 x .065 1.495 1.1154 201
201
321
1-5/8 x .083 1.495 1.4078 201
1-5/8 x .095 1.435 1.5989 201
1-5/8 x .120 1.385 1.9866 201
201
1-3/4 x .028 1.694 6.5201 201 Back to Top
201
1-3/4 x .035 1.680 .6602 201
201
321
1-3/4 x .049 1.652 .9168 201
201
321
1-3/4 x .065 1.620 1.2048 201
201
321
1-3/4 x .083 1.584 1.5220 201
201
1-3/4 x .095 1.560 1.7295 201
201
1-3/4 x .109 1.532 1.9676 201
1-3/4 x .120 1.510 2.1516 201
201
1-7/8 x .035 1.805 .7084 201
1-7/8 x .049 1.777 .9842 201
201
321
1-7/8 x .065 1.745 1.2941 201
201
1-7/8 x .095 1.685 1.8601 201
1-7/8 x .120 1.635 2.2016 201
201 Back to Top
2 x .035 1.930 .7565 201
201
2 x .049 1.902 1.0516 201
201
2 x .083 1.834 1.7502 201
201
2 x .095 1.810 1.9907 201
201
2 x .109 1.782 2.2673 201
201
2 x .120 1.760 2.4816 201
201
2 x .134 1.732 2.7505 201
2 x .188 1.624 3.7473 201
2-1/8 x .035 2.055 .8046 201
2-1/8 x .049 2.027 1.1190 201
2-1/8 x .065 1.995 1.4729 201
201
2-1/8 x .083 1.959 1.8644 201
2-1/8 x .095 1.935 2.1214 201
2-1/8 x .120 1.885 2.6466 201
2-1/4 x .035 2.180 .8528 201
321
2-1/4 x .049 2.152 1.1863 201
201
321
2-1/4 x .065 2.120 1.5623 201
201
321
2-1/4 x .083 2.084 1.9785 201
201
2-1/4 x .095 2.060 2.2520 201
2-1/4 x .120 2.010 2.8117 201
201
2-3/8 x .035 2.305 .9009 201
2-3/8 x .049 2.277 1.2537 201
2-3/8 x .065 2.245 1.6517 201
201
2-3/8 x .083 2.209 2.0926 201
201
2-3/8 x .120 2.135 2.9767 201
2-1/2 x .035 2.430 .9490 201 Back to Top
201
321
2-1/2 x .049 2.402 1.3211 201
201
321
2-1/2 x .065 2.370 1.7410 201
201
321
2-1/2 x .083 2.334 2.2068 201
201
2-1/2 x .095 2.310 2.5133 201
321
2-1/2 x .109 2.282 2.8668 201
2-1/2 x .120 2.260 3.1417 201
201
2-5/8 x .035 2.555 .9972 201
2-5/8 x .049 2.572 1.3885 201
2-5/8 x .065 2.495 .9971 201
201
2-5/8 x .083 2.459 2.3208 201
2-5/8 x .120 2.385 3.3067 201
201
2-3/4 x .035 2.680 1.0453 201
321
2-3/4 x .049 2.652 1.4558 201
321
2-3/4 x .065 2.620 1.9198 201
201
2-3/4 x .083 2.584 2.4350 201
201
2-3/4 x .095 2.560 2.7745 201
2-3/4 x .109 2.532 2.4350 201
2-3/4 x .120 2.510 3.4717 201
201
2-7/8 x .065 2.745 2.0092 201
201
2-7/8 x .120 2.635 3.6367 201
3 x .028 2.944 .9154 201
321
3 x .035 2.930 1.1415 201
201
321
3 x .049 2.902 1.5906 201
201
321
3 x .065 2.870 2.0986 201
201
321
3 x .083 2.834 2.6633 201
201
3 x .095 2.810 3.0358 201
201
3 x .109 2.782 3.4664 201
201
3-1/2 x .120 3.260 4.462 201
201
3-1/2 x 1.000 1.500 27.500 201
201
3-3/4 x .049 3.652 1.9948 201
3-3/4 x .065 3.620 2.635 201
3-3/4 x .083 3.584 3.3480 201
4 x .035 3.930 1.5265 201
201
321
4 x .049 3.902 2.130 201
201
321
4 x .065 3.870 2.814 201
201
321
4 x .083 3.834 3.576 201
201
4 x .095 3.810 4.081 201
4 x .109 3.782 4.665 201
201
4 x .120 3.760 5.122 201
201
321
4 x .134 3.732 5.699 201 Back to Top
201
4-1/4 x .065 4.120 2.9923 201
4-1/4 x .083 4.084 3.8045 201
4-1/4 x .120 4.010 5.452 201
201
4-1/2 x .049 4.402 2.3991 201
4-1/2 x .065 4.370 3.171 201
201
4-1/2 x .083 4.334 4.0327 201
201
4-1/2 x .120 4.260 5.782 201
201
5 x .049 4.902 2.6686 201
201
321
5 x .065 4.870 3.529 201
201
5 x .083 4.834 4.489 201
201
5 x .095 4.810 5.1257 201
5 x .109 4.782 5.8643 201
201
5 x .120 4.760 6.442 201
201
5 x .134 4.732 7.172 201
5-1/4 x .120 5.010 6.7716 201
201
5-1/2 x .065 5.370 3.8860 201
201
5-1/2 x .083 5.334 4.9457 201
5-1/2 x .120 5.260 7.102 201
201
5-3/4 x .065 5.620 4.0648 201
5-3/4 x .120 5.510 7.4201 201
6 x .035 5.930 2.2965 201 Back to Top
6 x .049 5.902 3.2076 201
201
6 x .065 5.870 4.244 201
201
321
6 x .083 5.834 5.402 201
6 x .109 5.782 7.063 201
201
6 x .120 5.760 7.762 201
201
6 x .134 5.732 8.646 201
201
6 x .188 5.624 12.019 201
6 x .250 5.500 15.813 201
201
6-1/4 x .120 6.010 8.092 201
201
6-1/4 x .188 5.874 12.536 201
6-1/4 x .250 5.750 16.500 201
6-1/2 x 0.65 6.370 4.601 201
6-1/2 x .120 6.260 8.422 201
201
6-1/2 x .250 6.000 17.188 201
6-3/4 x .250 6.250 17.875 201
7 x .049 6.902 3.747 201
7 x .065 6.870 4.9585 201
201
10-1/4 x .625 9.000 66.172 201 Back to Top
201
10-1/4 x .750 8.750 78.375 201
201
10-1/4 x 1.000 8.250 101.750 201
10-1/2 x .250 10.000 28.188 201
201
10-1/2#8243; x .375 9.750 41.766 201
10-1/2 x .500 9.500 55.000 201
201
10-1/2 x .625 9.250 67.891 201
10-1/2 x .750 9.000 80.438 201
201
10-1/2 x 1.000 8.500 104.500 201
201
10-1/2 x 1.500 7.500 148.500 201
11 x .188 10.624 22.359 201
11 x .250 10.500 29.562 201
11 x .375 10.250 43.828 201
11 x .500 10.000 57.750 201
201
11 x .625 9.750 71.328 201
11 x .750 9.500 84.562 201
201
11 x 1.000 9.000 110.000 201
201
11 x 1.500 8.000 756.750 201
11-1/2 x .250 11.000 30.938 201
11-1/2 x .500 10.500 60.500 201
201
11-1/2 x .750 10.000 88.688 201
11-1/2 x 1.000 9.500 115.500 201
12 x .065 11.870 8.534 201 Back to Top
12 x .083 11.834 10.880 201
12 x .109 11.782 14.257 201
201
12 x .120 11.760 15.682 201
201
12 x .134 11.732 17.490 201
201
12 x .188 11.624 24.427 201
201
321
12 x .250 11.500 32.312 201
201
321
12 x .375 11.250 47.953 201
201
12 x .500 11.000 63.250 201
201
12 x .625 10.750 78.203 201
12 x .750 10.500 92.812 201
201
12 x 1.000 10.000 121.000 201
201
12 x 1.250 9.500 147.812 201
12 x 1.500 9.000 173.250 201
201
12-1/4 x .250 11.750 33.000 201
12-1/2 x .250 12.000 33.688 201
12-1/2 x .500 11.500 66.000 201
12-1/2 x .750 11.000 96.938 201
201
12-1/2 x 1.000 10.500 126.500 201
13 x .250 12.500 35.062 201
13 x .500 12.000 68.750 201
201
13 x .750 11.500 101.062 201
13 x 1.000 11.000 132.000 201
201
14 x .109 13.782 16.655 201
14 x .120 13.760 18.322 201
14 x .134 13.732 20.438 201
14 x .250 13.500 37.812 201
14 x .500 13.000 74.250 201
14 x .750 12.500 109.312 201
14 x 1.000 12.000 143.000 201
201 Back to Top



ASTM A249 TP201 Stainless Steel tube Chemical Composition

The below table shows the chemical composition of the used for ASTM A249 TP201 Stainless Steel Tubes:

Element Content (%)
Iron, Fe 72
Chromium, Cr 16.0 - 18.0
Manganese, Mn 5.50 - 7.50
Nickel, Ni 3.50 - 5.50
Silicon, Si 1.0
Nitrogen, N 0.25
Carbon, C 0.15



ASTM A249 TP201 Mechanical Properties

Properties Metric Imperial
Tensile strength (transverse at room temperature) 685 MPa 99400 psi
Tensile strength (longitudinal at room temperature) 696 MPa 101000 psi
Yield strength (transverse at room temperature) 292 MPa 42400 psi
Yield strength (longitudinal at room temperature) 301 MPa 43700 psi
Compressive yield strength 365 MPa 52900 psi
Elastic modulus 197 GPa 28573 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Elongation at break (longitudinal at room temperature) 56% 56%
Elongation at break (transverse at room temperature) 62.50% 62.50%
Hardness, Rockwell B (transverse at room temperature) 85 85
Hardness, Rockwell B (longitudinal at room temperature) 85 85



ASTM A249 TP201 Stainless Steel Welded Tubes Physical Properties

Physical properties of ASTM A249 grade TP201 stainless steel in the annealed condition

Properties Metric Imperial
Density 7.86 g/cm3 0.284 lb/in³



ASTM A249 TP201 Equivalent

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
 SS 201 1.4404 / 1.4435 S31603 SUS 201 201S11 / 201S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Available Stock of ASTM A249 TP201 Tube , ASTM A249 TP201 SS Welded Tube

Asme SA249 201 Stainless Steel Coil Tubes Supplier & Manufacturer in India ASTM A249 Type 201 Stainless Steel Tubes Supplier & Manufacturer in India
Asme SA249 201 Stainless Steel Capillary Tubes Supplier & Manufacturer in India Asme SA249 201 Schedule 40 SS Tubes Supplier & Manufacturer in India
ASTM A249 SS 201 Welded Tubes Supplier & Manufacturer in India Asme SA249 201 Welded Tube Manufacturer in India
ASTM A249 GR TP201 Tube Manufacturer in India ASTM A249 Grade TP201 Tubing Supplier & Manufacturer in India
Asme SA249 201 Bright Annealed Coil tube Supplier & Manufacturer in India Asme SA249 201 High Pressure Tubes Supplier & Manufacturer in India
Asme SA249 201 Stainless Steel Slot Round Tubes Supplier & Manufacturer in India Asme SA249 201 Thin-Wall Stainless Steel Tube Exporter
Asme SA249 201 Stainless Steel U Bend Tubes Supplier & Manufacturer in India Asme SA249 201 Schedule 80 SS Tubes Supplier & Manufacturer in India
Asme SA249 201 Welded Tubing Supplier & Manufacturer in India Asme SA249 201 Schedule 10 SS Tubes Supplier & Manufacturer in India
Asme SA249 201 Tubing Manufacturer in India Asme SA249 201 Sch 5 SS Tubes Supplier & Manufacturer in India
INOX ASTM A249 TP201 Tubing Supplier & Manufacturer in India Asme SA249 201 Stainless Steel Seamless Tubing
ASTM A249 Tp201 Welded SS Tubing Asme SA249 201 Welded Stainless Steel Tubing
ASTM A249 TP201 SS Welded Tubes Supplier & Manufacturer in India ASTM A249 TP201 Welded Cold Drawn Tubes Supplier & Manufacturer in India
Asme SA249 201 Stainless Steel Welded Tube Dealer Asme SA249 201 Stainless Steel Square Tubes Supplier & Manufacturer in India
Asme SA249 201 Stainless Steel Oval Tubes Supplier & Manufacturer in India Asme SA249 201 Stainless Steel Hollow Tube Exporter
Asme SA249 201 Stainless Steel Electropolished Tubes Asme SA249 201 SS Rectangular Tubes Supplier & Manufacturer in India
Asme SA249 201 Seamless SS Ornamental Tubes Asme SA249 201 SS Superheater Tubes Manufacturer
Asme SA249 201 SS Hexagonal Tubes Supplier & Manufacturer in India Asme SA249 201 SS Round Tubes Supplier & Manufacturer in India
Asme SA249 201 Stainless Steel Exhaust Tubes Asme SA249 201 Stainless Steel Heat Exchnager Tubes
Asme SA249 201 Seamless Color Coated Tubes Asme SA249 201 SS Condenser Tubes Supplier & Manufacturer in Indias
Asme SA249 201 Hot Rolled SS Tubes Supplier & Manufacturer in Indias Asme SA249 201 Stainless Steel Boiler Tubes Supplier & Manufacturer in India
Asme SA249 201 SS Welded Tubes Supplier & Manufacturer in India Asme SA249 201 Stainless Steel Instrumentation Tubes
ASTM A249 UNS S20103 Tubes Supplier & Manufacturer in India ASME SA249 TP201 Stainless Steel Tubes Supplier & Manufacturer in India



ASTM A249 Tp201 Stainless Steel Tube Price List
