ASTM a213 grade tp304 Suppliers in India

ASME SA213 TP 304, ASTM A213 TP304 Stainless steel seamless tube, astm a213 tp304 Manufacturer in India, astm a213 tp304 Suppliers in Mumbai


astm a213 tp304 Exporter, ASTM A213 stainless steel 304 seamless Tube, ASME SA213 TP304 seamless Tube, astm a213 ss 304 tube exporter in india


KAMAL STEEL INDUSTRIES is a well-known manufacturer, supplier, and exporter of ASTM a213 grade tp304. ASME sa213 tp304 specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Heat-Exchanger Tubes and Superheater. We offer ASTM a213 grade tp304 mostly used as boiler, heat exchanger tubes, superheater. SA 213 gr tp 304 Tubes made by an austenitic grade with the addition of 2-3% molybdenum which further improves corrosion resistance. ASTM a213 grade tp304 tube sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter & 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness, if specified in the order, average wall thickness. ASTM A213 TP304 Stainless Steel Seamless Tubes having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.


A213 TP304 seamless Tube

A213 TP304 seamless Tube

ASTM A213 TP304 Tube

ASTM A213 TP304 Tube

ASTM A213 TP304 Tubing

ASTM A213 TP304 Tubing



ASTM A213 TP304 Stainless steel Tube Specification

Value Added Services
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Packaging
Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Delivery
By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 30 Feet Container / 35 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes
Specification
ASTM A-213 & Its equivalent ASME, DIN & EN Standard.
Grades
304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410,446
Type
Seamless Ferritic and Austenitic Boiler, Superheater, and Heat-Exchanger Tubes
Outer Diameter Size
1/4” OD, NB to 3” OD, NB sizes
Thickness
1mm to 12mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Length
Up to 6 meters, custom cut lengths
Ends
No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Seamless Tubes
Delivery Conditions
As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
Coating
Electropolish, Mechanical Polish, Satin Finish, Passivated
Other Testing
Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
Dimension
All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME



ASTM A213 TP304 Stainless Steel Tube, ASTM A213 TP304 seamless Tube Dealer, ASTM A213 TP304 Stainless seamless Tube, ASTM A213 TP304 Stainless Steel Tube, ASTM A213 TP304 SS Tube, ASTM A213 TP304 SS Tube, ASTM A213 TP304 Cold Draw seamless Tube, ASTM A213 TP304 Stainless Steel ERW Tube

Suppliers of ASTM A213 TP304 Stainless Steel seamless Tube,ASTM A213 Tp304 seamless Tube,ASTM A213 TP304 Stainless Steel Tube Exporter,ASTM A213 UNS S30400 seamless Tube Distributor, ASTM A213 Grade 304 seamless Heat Exchanger Tube Distributor, TP304 A213 seamless Condenser Tube Dealer ASTM A213 TP304 Tube Supplier in Mumbai, India.



Types of ASTM A213 TP304 Stainless Steel Tube



ASTM A213 TP304 Exhaust Tube
ASTM A213 TP304 Condenser Tube
ASTM A213 TP304 U Tube
ASTM A213 TP304 Perofrated



ASTM A213 TP304 Boiler Tube
ASTM A213 TP304 Decorative Tube

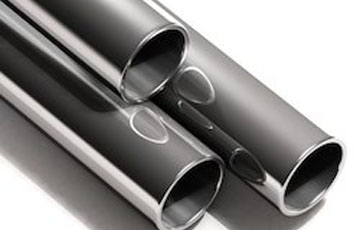

ASTM A213 TP304 Hollow Tube

ASTM A213 TP304 Oval Tube
ASTM A213 TP304 Polished Tube
ASTM A213 TP304 Capillary

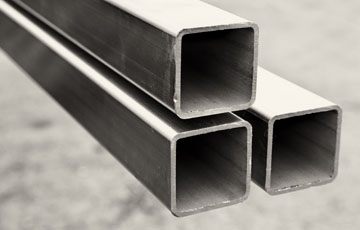

ASTM A213 TP304 square Tube
ASTM A213 TP304 seamless Tube
ASTM A213 TP304 Round Tube
ASTM A213 TP304 Rectangular Tube



ASTM A213 TP304 Stainless Steel Tube Sizes

ASTM A213 TP304 SS tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a ss seamless Tube is manufactured in sizes from 1/2” to 8”NB according to current standards API, ASTM, and ASME.

ASTM A213 TP304 TUBE DIMENSIONS AND WEIGHTS

Seamless Type 304
ASTM A213
Average wall
OD inches Ave. Wall inches D/t Ratio ID inches Tubing Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

ASTM A213 TP304 Tube Dimensions

OD inches Ave. Wall inches D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904



ASTM A213 TP304 STAINLESS STEEL TUBE SCHEDULE CHART

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″




ANSI Pipe SCH5 to SCH40 Chart

Pipe Size O.D. Inches 5s TRUE 5 10s TRUE 10 20 30 40s & STD TRUE 40 60
1/8 0.405 0.35 0.049 0.049 0.068 0.068
0.1383 0.1863 0.1863 0.2447 0.2447
1/4 0.54 0.049 0.065 0.065 0.088 0.088
0.257 0.3297 0.3297 0.4248 0.4248
3/8 0.675 0.049 0.065 0.065 0.091 0.091
0.3276 0.4235 0.4235 0.5676 0.5676
1/2 0.84 0.065 0.065 0.083 0.083 0.109 0.109
0.5383 0.5383 0.671 0.671 0.851 0.851
3/4 1.05 0.065 0.065 0.083 0.083 0.113 0.113
0.6838 0.6838 0.8572 0.8572 1.131 1.131
1 1.315 0.065 0.065 0.109 0.19 0.133 0.133
0.8678 0.8678 1.404 1.404 1.679 1.679
1 1/4 1.66 0.065 0.065 0.109 0.109 0.14 0.14
1.107 1.107 1.806 1.806 2.273 2.273
1 1/2 1.9 0.065 0.065 0.109 0.109 0.145 0.145
1.274 1.274 2.638 2.638 2.718 2.718
2 2.375 0.065 0.065 0.109 0.109 0.154 0.154
1.604 1.604 2.638 2.638 3.653 3.653
2 1/2 2.875 0.083 0.083 0.12 0.12 0.203 0.203
2.475 2.475 3.531 3.531 5.793 5.793
3 3.5 0.083 0.083 0.12 0.12 0.216 0.216
3.029 3.029 4.332 4.332 7.576 7.576
3 1/2 4 0.083 0.083 0.12 0.12 0.226 0.226
3.472 3.472 4.97 4.97 9.109 9.109
4 4.5 0.083 0.083 0.12 0.12 0.237 0.237 0.281
3.915 3.915 5.613 5.613 10.79 10.79 12.66
4 1/2 5 0.247
12.53
5 5.563 0.109 0.109 0.134 0.134 0.258 0.258
6.349 6.349 7.77 7.77 14.62 14.62
6 6.625 0.109 0.109 0.134 0.134 0.28 0.28
7.585 7.585 9.289 9.289 18.97 18.97
7 7.625 0.301
23.57
8 8.625 0.109 0.109 0.148 0.148 0.25 0.277 0.322 0.322 0.406
9.914 9.914 13.4 13.4 22.36 24.7 28.55 28.55 35.64
9 9.625 0.342
33.9
10 10.75 0.134 0.134 0.165 0.165 0.25 0.307 0.365 0.365 0.5
15.19 15.19 18.65 18.65 28.04 34.24 40.48 40.48 54.74
11 11.75 0.375
45.55
12 12.75 0.156 0.165 0.18 0.18 0.25 0.33 0.375 0.406 0.562
21.07 22.18 24.2 24.2 33.38 43.77 49.56 53.53 73.16
14 14 0.156 0.188 0.25 0.312 0.375 0.375 0.437 0.593
23.06 27.73 36.71 45.68 54.57 54.57 63.67 84.91
16 16 0.165 0.188 0.25 0.312 0.375 0.375 0.5 0.656
27.9 31.75 42.05 52.36 62.58 62.58 82.77 107.5
18 18 0.165 0.188 0.25 0.312 0.437 0.375 0.562 0.75
31.43 35.76 47.39 59.03 82.06 70.59 104.8 138.2
20 20 0.188 0.218 0.25 0.375 0.5 0.375 0.593 0.812
39.78 46.05 52.73 78.6 104.1 78.6 122.9 166.4
24 24 0.218 0.25 0.25 0.375 0.562 0.375 0.687 0.968
55.37 63.41 63.41 94.62 140.8 94.62 171.2 238.1
26 26 0.312 0.5 0.375
85.6 136.2 102.6
28 28 0.312 0.5 0.625 0.375
92.26 146.8 182.7 110.6
30 30 0.25 0.312 0.312 0.5 0.625 0.375
79.43 98.93 98.93 157.5 196.1 118.6
32 32 0.312 0.5 0.625 0.375 0.688
105.6 168.2 209.4 126.7 230.1
34 34 0.312 0.5 0.625 0.375 0.688
112.3 178.9 222.8 134.7 244.8
36 36 0.312 0.625 0.375 0.75
118.9 236.1 142.7 282.3
40 40 0.375
158.7
42 42 0.375
166.7
48 48 0.375
190.7



ASTM A213 TP304 TUBE PRESSURE RATING

Tube Pressure Rating For ASTM A213 TP304

OD inches Ave. Wall inches Min Yield Strength (PSI) Min Tensile Strength (PSI) Theoretical Burst Pressure * (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point ** (PSI) Collapse Pressure *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.875 0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
1.250 0.065 30,000 75,000 8,705 2,176 3,482 2,958
1.250 0.083 30,000 75,000 11,485 2,871 4,594 3,719
1.250 0.095 30,000 75,000 13,443 3,361 5,377 4,213
1.250 0.109 30,000 75,000 15,843 3,961 6,337 4,776
1.250 0.120 30,000 75,000 17,822 4,455 7,129 5,207
1.250 0.134 30,000 75,000 20,468 5,117 8,187 5,742
1.500 0.035 30,000 75,000 3,671 918 1,469 1,367
1.500 0.049 30,000 75,000 5,243 1,311 2,097 1,896
1.500 0.065 30,000 75,000 7,117 1,779 2,847 2,487
1.500 0.083 30,000 75,000 9,333 2,333 3,733 3,136
1.500 0.095 30,000 75,000 10,878 2,719 4,351 3,559
1.500 0.109 30,000 75,000 12,754 3,188 5,101 4,043
1.500 0.120 30,000 75,000 14,286 3,571 5,714 4,416
1.500 0.134 30,000 75,000 16,315 4,079 6,526 4,881
1.500 0.148 30,000 75,000 18,439 4,610 7,375 5,336
1.750 0.035 30,000 75,000 3,125 781 1,250 1,176
1.750 0.049 30,000 75,000 3,864 966 1,546 1,434
1.750 0.065 30,000 75,000 6,019 1,505 2,407 2,146
1.750 0.083 30,000 75,000 7,860 1,965 3,144 2,711
1.750 0.095 30,000 75,000 9,135 2,284 3,654 3,080
1.750 0.109 30,000 75,000 10,672 2,668 4,213 3,504
1.750 0.120 30,000 75,000 11,921 2,980 4,768 3,832
1.750 0.134 30,000 75,000 13,563 3,391 5,425 4,242
1.750 0.148 30,000 75,000 15,268 3,817 6,107 4,645
1.750 0.165 30,000 75,000 17,430 4,357 6,972 5,124
2.000 0.035 30,000 75,000 2,720 680 1,088 1,032
2.000 0.049 30,000 75,000 3,864 966 1,546 1,434
2.000 0.065 30,000 75,000 5,214 1,303 2,086 1,887
2.000 0.083 30,000 75,000 6,788 1,697 2,715 2,387
2.000 0.095 30,000 75,000 7,873 1,968 3,149 2,715
2.000 0.109 30,000 75,000 9,175 2,294 3,670 3,092
2.000 0.120 30,000 75,000 10,227 2,557 4,091 3,384
2.000 0.134 30,000 75,000 11,605 2,901 4,642 3,751
2.000 0.148 30,000 75,000 13,028 3,257 5,211 4,111
2.000 0.165 30,000 75,000 14,820 3,705 5,928 4,542



ASTM A213 TP304 STAINLESS STEEL TUBE TOLERANCES

Diameter Tolerance ASTM A213 TP304 Tube

NPS ASTM A213 TP304 Tube OD Tolerance
+
inch mm inch mm
1/8~1 1 /2
> 1 1 /2~4
> 4~8
> 8~18
> 18~26
> 26~34
> 34~48
1/64(0.015)
1/32(0.031)
1/16(0.062)
3/32(0.093)
1/8(0.125)
5/32(0.156)
3/16(0.187)
0.4
0.8
1.6
2.4
3.2
4.0
4.8
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
0.8
0.8
0.8
0.8
0.8
0.8
0.8

Wall Thickness Tolerance ASTM A213 TP304 Tubs

NPS ASTM A213 TP304 Tube Tolerance, %
+
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, seamless 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5



ASTM A213 TP304 Stainless Steel tube Chemical Composition

The below table shows the chemical composition of the used for ASTM A213 TP304 Stainless Steel Tube:

GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0



ASTM A213 TP304 Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min.º F(º C) Ksi (MPa), Min. Ksi (MPa), Min.

TP304 Solution 1900 (1040) 75(515) 30(205) 35



ASTM A213 TP304 Stainless Steel seamless Tube Physical Properties

Physical properties of ASTM A213 grade TP304 stainless steel in the annealed condition


Grade
Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720



ASTM A213 TP304 Equivalent

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
ASTM A213 TP304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304



Available Stock of ASTM A213 TP304 Tube , ASTM A213 TP304 SS seamless Tube

ASTM A213 SS 304 seamless Tube Supplier & Manufacturer in India ASTM A213 TP304 seamless Tube Manufacturer in India
ASTM A213 GR TP304 Tube Manufacturer in India ASTM A213 Grade TP304 Tube Supplier & Manufacturer in India
ASTM A213 TP304 Bright Annealed Coil tube Supplier & Manufacturer in India ASTM A213 TP304 High Pressure Tube Supplier & Manufacturer in India
ASME SA213 Tp304 seamless Stainless Steel Tube ASME SA213 TP304 seamless Stainless Steel Tube
ASME SA213 TP304 Stainless Steel seamless Tube Supplier & Manufacturer in India ASME SA213 TP304 Stainless Steel Instrumentation Tube
ASME SA213 TP304 Stainless Steel Coil Tube Supplier & Manufacturer in India ASME SA213 Type 304 Stainless Steel Tube Supplier & Manufacturer in India
ASME SA213 TP304 Stainless Steel Capillary Tube Supplier & Manufacturer in India ASME SA213 TP304 Schedule 40 Stainless Steel Tube Supplier & Manufacturer in India
ASME SA213 TP304 Stainless Steel U Bend Tube Supplier & Manufacturer in India ASME SA213 TP304 Schedule 80 Stainless Steel Tube Supplier & Manufacturer in India
ASME SA213 TP304 seamless Tube Supplier & Manufacturer in India ASME SA213 TP304 Schedule 10 Stainless Steel Tube Supplier & Manufacturer in India
ASME SA213 TP304 Stainless Steel seamless Tube Supplier & Manufacturer in India ASME SA213 TP304 seamless Cold Drawn Tube Supplier & Manufacturer in India
ASTM A213 TP304 Stainless Steel seamless Tube Dealer ASME SA213 TP304 Stainless Steel Square Tube Supplier & Manufacturer in India
ASTM A213 TP304 Stainless Steel Oval Tube Supplier & Manufacturer in India ASME SA213 TP304 Stainless Steel Hollow Tube Exporter
ASME SA213 TP304 Stainless Steel Electropolished Tube ASTM A213 TP304 SS Rectangular Tube Supplier & Manufacturer in India
ASTM A213 TP304 Seamless Stainless Steel Ornamental Tube ASTM A213 TP304 SS Superheater Tube Manufacturer
ASTM A213 TP304 Stainless Steel Hexagonal Tube Supplier & Manufacturer in India ASTM A213 TP304 Stainless Steel Round Tube Supplier & Manufacturer in India
ASTM A213 TP304 Stainless Steel Exhaust Tube ASTM A213 TP304 Stainless Steel Heat Exchnager Tube
ASTM A213 TP304 Seamless Color Coated Tube Manufacturer ASTM A213 TP304 Stainless Steel Condenser Tube Supplier & Manufacturer in India
ASTM A213 TP304 Hot Rolled stainless steel Tube Supplier & Manufacturer in India ASTM A213 TP304 Stainless Steel Boiler Tube Supplier & Manufacturer in India
ASTM A213 TP304 Tube Manufacturer in India ASTM A213 TP304 Sch 5 Stainless Steel Tube Supplier & Manufacturer in India
INOX ASTM A213 TP304 Tube Supplier & Manufacturer in India ASTM A213 TP304 Stainless Steel Seamless Tube
ASTM A213 TP304 SS Slot Round Tube Supplier & Manufacturer in Indias ASTM A213 TP304 Thin-Wall Stainless Steel Tube Exporter
ASTM A213 UNS S30403 Tube Supplier & Manufacturer in India ASME SA213 TP304 Stainless Steel Tube Supplier & Manufacturer in India



ASTM A213 Tp304 Stainless Steel Tube Price List
