ASTM A249 Tubing

ASTM a249 tubing



Kamal Steels is one of the well-known distributor and manufacturer of Astm a249 Tubing. We offer SA249 Tubing Specification for nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels with various grades intended for such use as a boiler, heat exchanger, superheater, or condenser tubes. materials shall be furnished in the heat-treated condition in accordance with the required solution temperature and quenching method. Kamal Steels is India's largest independent stockholder of ASTM a249 stainless steel tube includes ASTM A249 TP304, ASTM A249 TP316, ASTM A249 TP304L, ASTM A249 and ASTM A249 TP201 in custom-made shapes and sizes as per the requirements are given by our clients, and that too at a reasonable and market leading prices. Meet the most seasoned ASTM A249 Tubing providers, who have supplied to countries all around the world, such as Egypt, Israel, Uganda, and Algeria.


ASTM A249 seamless Tube

ASTM A249 seamless Tube

ASTM A249 Tube

ASTM A249 Tube

ASTM A249 Tubing

ASTM A249 Tubing


ASME SA 249 Superheater Tubes Manufacturer in India, Refer Specification and Sizes


ASTM A249 Tubing Specification

ASTM a249 tubing specification



Supplier of SA 249M Welded Austenitic Steel Tube and A249 Boiler Tube in Mumbai, View Various Shapes


Types of ASTM A249 Stainless Steel Tube

ASTM A249 Exhaust Tube
ASTM A249 Condenser Tube

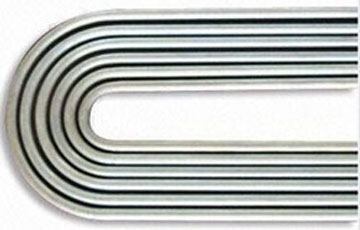

ASTM A249 U Tube
ASTM A249 Welded Tube



ASTM A249 Boiler Tube
SA249 Heat Exchanger Tube
ASTM A249 Condenser tube
ASTM A249 ERW Tube



SA 249 Superheater Tubing Sizes

ASTM A249 Welded Mirror Polished Tube

O/D Wall Weight per O/D Wall Weight per
(ins) (mm) metre (kg) (ins) (mm) metre (kg)
1/2 1.50 0.42 1 1/4 1.50 1.13
5/8 1.20 0.44 1 3/8 1.20 1.02
5/8 1.50 0.54 1 1/2 1.20 1.11
3/4 1.20 0.53 1 1/2 1.50 1.38
3/4 1.50 0.66 1 1/2 2.00 1.81
3/4 1.20 0.63 1 3/4 1.50 1.62
7/8 1.50 0.78 2 1.20 1.49
7/8 2.00 1.01 2 1.50 1.85
1 1.20 0.73 2 2.00 2.40
1 1.50 0.90 2 1/2 1.50 2.34
1 2.00 1.17 3 1.50 2.81
1 1/8 1.50 1.02 4 3.00 7.41
1 1/4 1.20 0.92



SA 249M Heat-Exchanger Dull Polished Tube

Dimensions Wall Weight per Dimensions Wall Weight per
(mm) (mm) metre (kg) (mm) (mm) metre (kg)
12.7 x 12.7 1.20 0.44 40 x40 1.20 1.49
12.7 x 12.7 1.50 0.55 40 x40 1.50 1.85
15 x 15 1.20 0.53 40 x40 2.00 2.45
15 x 15 1.50 0.65 40 x40 3.00 3.75
20 x 20 1.20 0.71 50 x50 1.50 2.32
20 x 20 1.50 0.88 50 x50 2.00 3.08
20 x 20 2.00 1.19 50 x50 3.00 4.65
25 x 25 1.20 0.92 60 x60 2.00 3.71
25 x 25 1.50 1.14 60 x60 3.00 5.49
25 x 25 2.00 1.49 70 x70 3.00 6.53
25 x 25 3.00 2.20 80 x80 2.00 4.98
30 x 30 1.20 1.10 80 x80 3.00 7.53
30 x 30 1.50 1.37 100 x 100 2.00 6.40
30 x 30 2.00 1.84 100 x 100 3.00 9.53
30 x 30 3.00 2.72



ASME SA 249 Welded Unpolished Tube

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
12.7 x 12.7 1.20 0.44 120 x 120 5.00 18.66
12.7 x 12.7 1.50 0.55 120 x 120 6.00 21.20
40 x 40 4.00 4.80 150 x 150 4.00 18.60
50 x 50 4.00 5.96 150 x 150 5.00 23.00
50 x 50 5.00 7.41 150 x 150 6.00 31.20
60 x 60 4.00 7.22 150 x 150 8.00 34.30
60 x 60 5.00 8.90 150 x 150 10.00 41.65
80 x 80 4.00 9.82 200 x 200 5.00 30.80
80 x 80 5.00 12.39 200 x 200 6.00 36.90
100 x 100 4.00 12.40 200 x 200 8.00 47.25
100 x 100 5.00 15.38 200 x 200 10.00 57.60
100 x 100 6.00 17.50 250 x 250 8.00 59.90
100 x 100 8.00 21.60 250 x 250 10.00 73.50



ASTM A249 Type 304 Handrail Section, Welded, Unannealed (Dull Polished)

O/D Wall Weight per O/D Wall Weight per
(mm) (mm) metre (kg) (in) (mm) metre (kg)
42.40 x 2.5 2.49 1 1/2 3.00 2.62
48.30 x 2.5 2.86 2 3.00 3.57
60.30 x 2.5 3.61 3 3.00 5.47
4 3.00 7.38



Rectangular 304 Tube Welded Unpolished

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions(mm) Wall (mm) Weight per metre (kg)
80 x 40 4.00 7.22 150 x 100 4.00 15.40
80 x 40 5.00 8.90 150 x 100 5.00 18.80
100 x 50 4.00 9.09 150 x 100 6.00 22.60
100 x 50 5.00 11.30 150 x 100 8.00 27.90
120 x 60 3.00 8.39 200 x 100 4.00 18.60
120 x 60 4.00 11.10 200 x 100 5.00 22.60
120 x 60 5.00 13.75 200 x 100 6.00 27.40
120 x 80 3.00 9.54 200 x 100 8.00 34.30
120 x 80 4.00 12.40 200 x 100 10.00 41.65
120 x 80 5.00 15.38 200 x 150 6.00 36.90
150 x 50 3.00 9.53 200 x 150 8.00 41.34
150 x 50 5.00 15.38 300 x 100 8.00 47.25
150 x 80 3.00 10.70 250 x 150 6.00 36.90
150 x 100 3.00 11.70 250 x 150 8.00 47.25



ASTM A249 Rectangular 304 Stainless Steel Tube Welded Dull Polished

Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
20 x 10 1.50 0.44 60 x 40 2.00 3.08
30 x 10 1.20 0.71 60 x 40 3.00 4.65
30 x 10 1.50 0.90 80 x 40 1.50 2.80
30 x 15 1.50 0.76 80 x 40 2.00 3.71
30 x 20 1.50 1.14 80 x 40 3.00 5.49
40 x 15 1.50 1.25 80 x 40 4.00 7.22
40 x 20 1.20 1.10 80 x 40 5.00 8.94
40 x 20 1.50 1.37 80 x 60 3.00 6.53
40 x 20 2.00 1.84 100 x 40 1.50 3.29
50 x 25 1.20 1.41 100 x 40 3.00 6.53
50 x 25 1.50 1.75 100 x 50 2.00 4.68
50 x 25 2.00 2.31 100 x 50 3.00 6.95
50 x 25 3.00 3.75 100 x 50 4.00 9.09
50 x 30 1.50 1.85 100 x 50 5.00 11.30
50 x 30 3.00 3.61 100 x 60 3.00 7.53
60 x 20 1.50 1.85 120 x 60 3.00 8.12
60 x 20 2.00 2.45 120 x 80 3.00 9.53
60 x 30 2.00 2.80 150 x 100 3.00 11.70
60 x 30 3.00 4.13 150 x 100 5.00 18.80
60 x 40 1.50 2.32



Stockist of Stainless Steel ASTM A249 Condenser Tubes and ASME SA 249 Welded Boiler Tube Pressure Rating


ASME SA 249M Welded Austenitic Steel Tube Pressure Rating

ASTM A249 Tube Pressure Rating


Stainless Steel ASTM A249 Condenser Tube Equivalent

Check Equivalent Material of ASTM A249 Heat Exchanger Tube

SAE grade EN-standard Steel no. k.h.s DIN EN-standard Steel name UNS
304L 1.4306 X2CrNi19-11 S30403
304L 1.4307 X2CrNi18-9 S3043
304LN 1.4311 X2CrNiN18-10 S30453
304 1.4301 X5CrNi18-10 S30400
304H 1.4948 X6CrNi18-11 S30409
310 1.4841 X22CrNi2520 S31000
310S 1.4845 X 5 CrNi 2520 S31008
321 1.4541 X6CrNiTi18-10 S32100
321H 1.4878 X12CrNiTi18-9 S32109
316 1.4401 X5CrNiMo17-12-2 S31600
316 1.4436 X3CrNiMo17-13-3 S31600
316L 1.4432 X2CrNiMo17-12-3 S31603
316L 1.4435 X2CrNiMo18-14-3 S31603
316L 1.4404 X2CrNiMo17-12-2 S31603
316LN 1.4406 X2CrNiMoN17-12-2 S31653
316Ti 1.4571 X6CrNiMoTi17-12-2 S31635
316LN 1.4429 X2CrNiMoN17-13-3 S31653

A249M Heat-Exchanger Tube Chemical Composition

Refer ASTM A249M ERW Tube Chemical and Mechanical Properties

ASTM A249 TUBE GRADES UNS Cr Ni Mo P C S Mn Si
ASME SA249 TP304 S30400 18.0-20.0 8.0-11.0 - 0.045 0.08 0.03 2 1
ASME SA249 TP304L S30403 18.0-20.0 8.0-13.0 - 0.045 0.035 0.03 2 1
ASME SA249 TP316 S3160 16.0-18.0 11.0-14.0 2.0-3.0 0.045 0.08 0.03 2 1
ASME SA249 TP316L S31603 16.0-18.0 10.0-14.0 2.0-3.0 0.045 0.035 0.03 2 1

A249 Boiler Tube Mechanical Properties

Material Yield Strength Tensile Strength Heat Temperure Elongation %, Min
Ksi (MPa), Min. Ksi (MPa), Min. Treatment Min.
º F(º C)
ASME SA249 TP304 30(205) 75(515) Solution 1900 (1040) 35
ASME SA249 TP304L 25(170) 70(485) Solution 1900 (1040) 35
ASME SA249 TP316 30(205) 75(515) Solution 1900(1040) 35
ASME SA249 TP316L 25(170) 70(485) Solution 1900(1040) 35
