430 Stainless Steel Pipe

430 stainless steel pipe



Stainless Steel 430 Tube

Stainless Steel 430 Tube

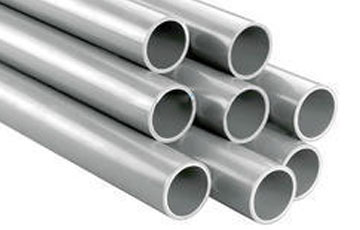

Stainless Steel 430 Seamless Pipe

Stainless Steel 430 Seamless Pipe

Stainless Steel 430 Welded Tube

Stainless Steel 430 Welded Tube


AISI 430 Round Pipe Manufacturer in India, View Specification


430 Stainless Steel Pipe Specifications

430 stainless steel pipe specification





Types of SS 430 Welded Pipes

SS 430 Capillary Tube
SS 430 Round Pipe
SS 430 Rectangular Pipe
SS 430 U Tube



SS 430 Hollow Tube
SS 430 Square Pipe
SS 430 Exhaust Tube
SS 430 Seamless Pipe



Supplier of ASTM A312 TP430 Seamless Pipe and SUS 430 SS ERW Pipe in Mumbai, View Equivalent



Equivalent Grades for ASTM A312 TP430 Pipe

Grade Thermal Conductivity (W/m.K) Mean Coefficient of Thermal Expansion (mm/m/°C) Specific Heat 0-100°C (J/kg.K) Density (kg/m3) Elastic Modulus (GPa) Electrical Resistivity (nW.m)
SS 430 at 100°C at 500°C 0-100°C 0-315°C 0-538°C
23.9 26.0 10.4 11.0 11.4 460 -7750 200 600



SA 213 TP 430 Round Pipe and DIN 1.4016 Rectangle Pipe, With Hot, Cold Rolled Process



Stainless Steel 430 Pipe Size Range

Process OD in mm WT in mm Length in meter
Hot Rolled 30-500 3-60 6-12
Cold Drawn 10-200 0.5-20 1-12
Cold Rolled 6-200 0.1-20 1-12



UNS S43000 Stainless Steel Tube Chemical Composition

Check Chemical Compositon of ASTM A213 TP430 Square Pipe and 430 SS Seamless Tubing

Grade Cr Si C Mn P S
430 Min 12.0 - - - - -
max 14.0 1.00 0.15 1.00 0.04 0.03



SS 430 Round Pipe Mechanical Properties

Grade Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Tensile Strength (MPa) min Hardness
Rockwell B (HR B) Brinell (HB)
430 50,000 25 95,000 - 175



SA 213 TP 430 Pipes Physical Properties

Refer UNS S43000 Stainless Steel Box Pipe Non-corrosive Properties



Grade Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Electrical Resistivity (n.m) Density (kg/m3) Elastic Modulus (GPa) Specific Heat 0-1000C (J/kg.K)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
430 9.9 11.4 11.6 24.9 28.7 570 7750 200 460



ASTM A312 430 Stainless Steel Tube Applications

  • Pharmaceutical
  • Food and beverage
  • Oil and gas
  • Mining
  • Heat Exchangers
  • Power generation
  • Chemical and petrochemical
  • Fertilizers
  • Renewable energy
  • Off-Shore Oil Drilling Companies
  • Pulp and Paper Industry
  • Process piping
  • Water Equipment
  • Water/waste



Purchase quality items from reputable 430 Stainless Steel Pipe suppliers with a wealth of exporting expertise to Bahrain, Mauritius, Uganda, and the UAE.
